简介
这是一个Android流式布局,根据鸿翔大神之前写的FlowLayout设计思路结合Material
库中的ChipGroup
设计架构衍生而来,全新的流式布局TagFlowLayout组件

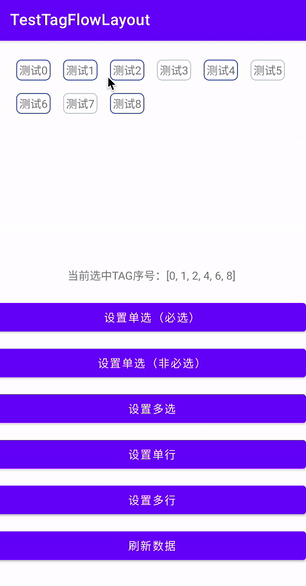

效果展示
![tagflowlayout_demo](tagflowlayout_demo.gif)
方法
setter
方法名称 |
作用 |
示例 |
setTagSpacingHorizontal(@Dimension tagSpacingHorizontal: Int) |
Tag间的水平间距 |
setTagSpacingHorizontal(24) |
setTagSpacingVertical(@Dimension tagSpacingVertical: Int) |
Tag间的垂直间距 |
setTagSpacingVertical(24) |
setSingleLine(singleLine: Boolean) |
是否开启单行模式(默认false) |
setSingleLine(true) |
setSingleSelection(singleSelection: Boolean) |
是否开启单选模式(默认false) |
setSingleSelection(true) |
setSelectionRequired(selectionRequired: Boolean) |
是否为必选项(默认false |
setSelectionRequired(true) |
setSelectMax(selectMax: Int) |
最大选择数量(<=0为无效值 |
setSelectMax(10) |
setOnTagClickListener(tagClickListener: TagClickListener) |
设置Tag点击事件 |
setOnTagClickListener { view, position, parent -> } |
setCheckedChangedListener(checkedChangedListener: CheckedChangedListener) |
设置Tag状态变更监听事件 |
setCheckedChangedListener { group, checkedIds -> } |
getter
方法名称 |
作用 |
返回类型 |
isSelectMax() |
是否达到最大的选择数量 |
Boolean |
clearCheck() |
清除所有选中数据 |
void |
getCheckedTagOrder() |
获取选中单选下标 |
Int |
getCheckedTagOrders() |
获取选中集合下标组 |
List<Int> |
Attributes属性
属性名称 |
作用 |
示例 |
app:tagSpacing |
Tag间的间距 |
app:tagSpacing="24dp" |
app:tagSpacingHorizontal |
Tag间的水平间距 |
app:tagSpacingHorizontal="24dp" |
app:tagSpacingVertical |
Tag间的垂直间距 |
app:tagSpacingVertical="24dp" |
app:singleLine |
是否开启单行模式(默认false) |
app:singleLine="true" |
app:singleSelection |
是否开启单选模式(默认false) |
app:是否开启单选模式="true" |
app:selectionRequired |
是否为必选项(默认false) |
app:selectionRequired="true" |
app:selectMax |
最大选择数量(<=0为无效值) |
app:selectMax="10" |
用法
1 2 3
| dependencies { implementation 'io.github.smallmarker:tagflowlayout:1.0' }
|
声明
1 2 3 4 5
| <com.smallmarker.tagflowlayout.TagFlowLayout android:id="@+id/tag_flow_layout" android:layout_width="match_parent" android:layout_height="wrap_content" app:tagSpacing="16dp"/>
|
Adapter
方法属性
- 创建Adapter:
TagFlowAdapter.create(dataList)
- 设置Tag:
setView(parent: TagFlowLayout, position: Int, t: T)
- 设置Tag状态:
setChecked(position: Int, t: T)
- 监听状态变化:
setCheckedChanged(isChecked: Boolean, position: Int, view: View)
- 刷新适配器:
notifyDataSetChange()
使用步骤
1 2 3 4 5 6 7 8 9 10
| binding.tagFlowLayout.adapter = TagFlowAdapter.create(dataList) { setView { parent, position, t -> TextView(parent.context).apply { text = t setBackgroundResource(R.drawable.bg_tag_selector) setPadding(10, 10, 10, 10) } } }
|
支持通过state=checked
来控制选中和取消
1 2 3 4 5 6 7 8 9 10 11 12 13 14
| <selector xmlns:android="http://schemas.android.com/apk/res/android"> <item android:state_checked="true"> <shape android:shape="rectangle"> <corners android:radius="6dp" /> <stroke android:width="1.2dp" android:color="#374D9D" /> </shape> </item> <item> <shape android:shape="rectangle"> <corners android:radius="6dp" /> <stroke android:width="1.2dp" android:color="#C4C7D1" /> </shape> </item> </selector>
|
也可以自己在Adapter
的setCheckedChanged
处理显示
1 2 3 4 5 6 7 8
| setCheckedChanged { isChecked, position, view -> Log.d("TAG", "当前TAG状态:${isChecked}, ${position}") view.setBackgroundColor(if (isChecked) { Color.RED } else { Color.GRAY }) }
|
1 2 3 4 5 6 7 8 9
| binding.tagFlowLayout.setOnTagClickListener { view, position, parent -> Log.d("TAG", "当前选中TAG: ${position}") }
binding.tagFlowLayout.setCheckedChangedListener { group, checkedIds -> binding.tvTip.text = "当前选中TAG序号:${checkedIds}" }
|
总结
偶然发现material
库中chip
组件,其通过ChipGroup
实现流式布局的设计,加上很早之前有用过鸿神的FlowLayout
库,所以就在此基础上写了一个新的流式布局组件,该组件在类的命名上还是沿用了鸿神之前的FlowLayout
,为了不依赖material
库的较高版本的限制,故将需要用到的类抽取使用,做兼容处理
